Case Studies of Screw Pile Foundations for Energy Storage Systems: Rapid Foundation Solutions for Modular BESS Units

Summarize

intro

Overall summary of the project

BESS energy storage systems are emerging as a critical component of new energy infrastructure. Containerized energy storage units, battery cabinets, PCS, transformers and maintenance platforms all require foundation systems that are stable, rapidly installable and modularly scalable. This case study is proposed as an application example under the "Energy Storage Foundation Solutions" portfolio for new SSP sites, to demonstrate the engineering value of screw piles in foundation works for modular equipment.

Project Background

Foundations for energy storage projects differ from those of conventional buildings. They are generally designed for prefabricated, modular equipment units, which impose stringent requirements on foundation levelness, settlement control, installation precision and reserved space for subsequent maintenance. Existing BESS-related project records are available for older sites, while new sites may upgrade such materials into specialized case studies dedicated to energy storage foundations. The core objective is not merely to demonstrate "past experience in energy storage projects", but to elaborate on why screw piles are an ideal foundation solution for energy storage equipment.

Project Challenge

Energy storage equipment features heavy dead load, requiring strict control of differential settlement between multiple support points.

The layout of equipment bases, steel structural frames, cable trays and fire separation clearances must be coordinated with foundation arrangements.

New energy projects follow an accelerated construction schedule; the curing period of conventional concrete foundations may delay equipment delivery and installation.

Projects may be built in phases, so the foundation system shall allow convenient future expansion.

Engineering Theoretical Explanation

The core of BESS foundation design extends beyond load-bearing capacity, covering settlement control, uniform elevation control and coordinated multi-point support. With steel pipe shafts and helical flights, screw piles transfer equipment loads to stable deeper soil layers, mitigating adverse impacts of shallow backfill or soft soil on equipment foundations.

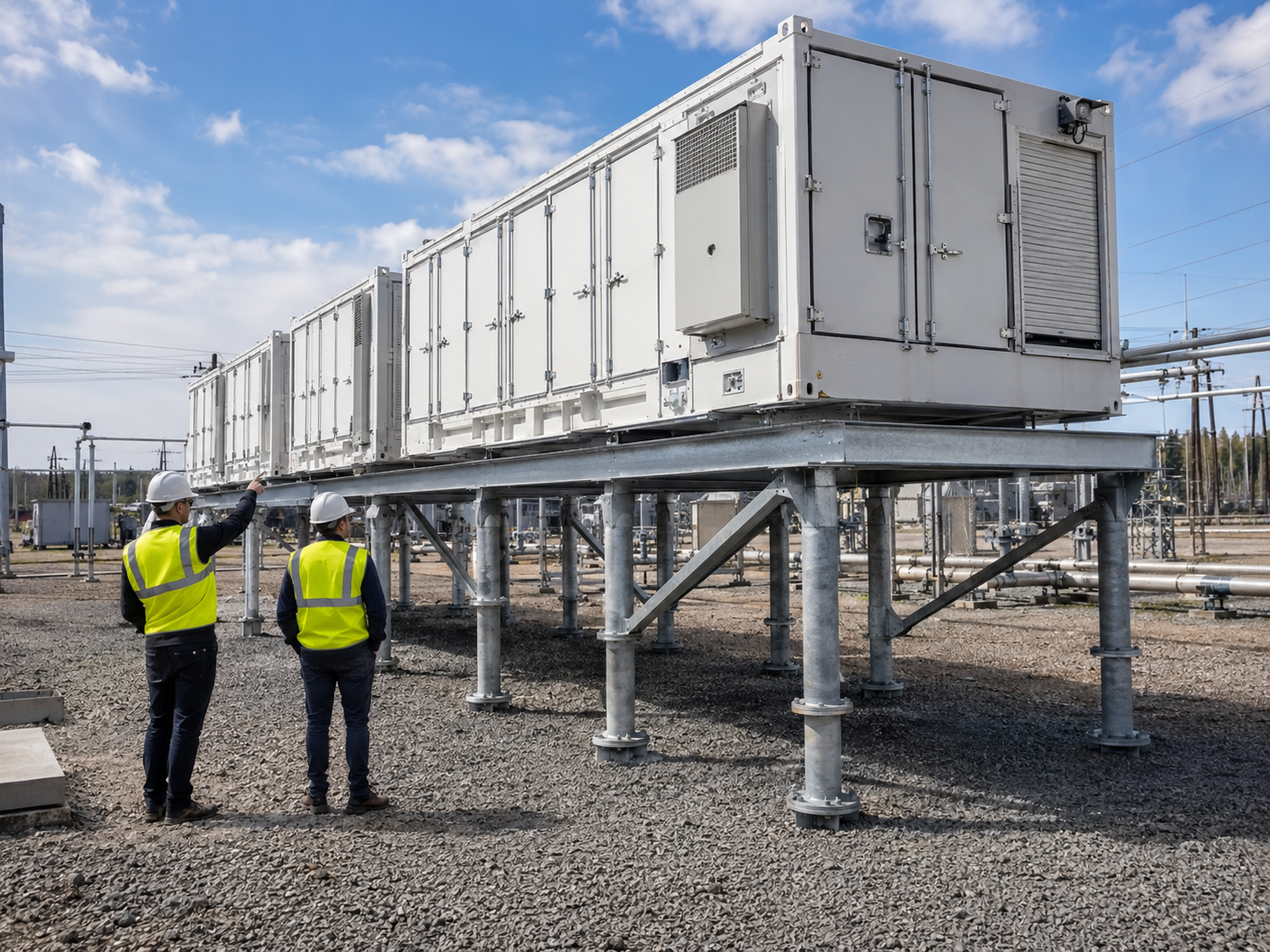

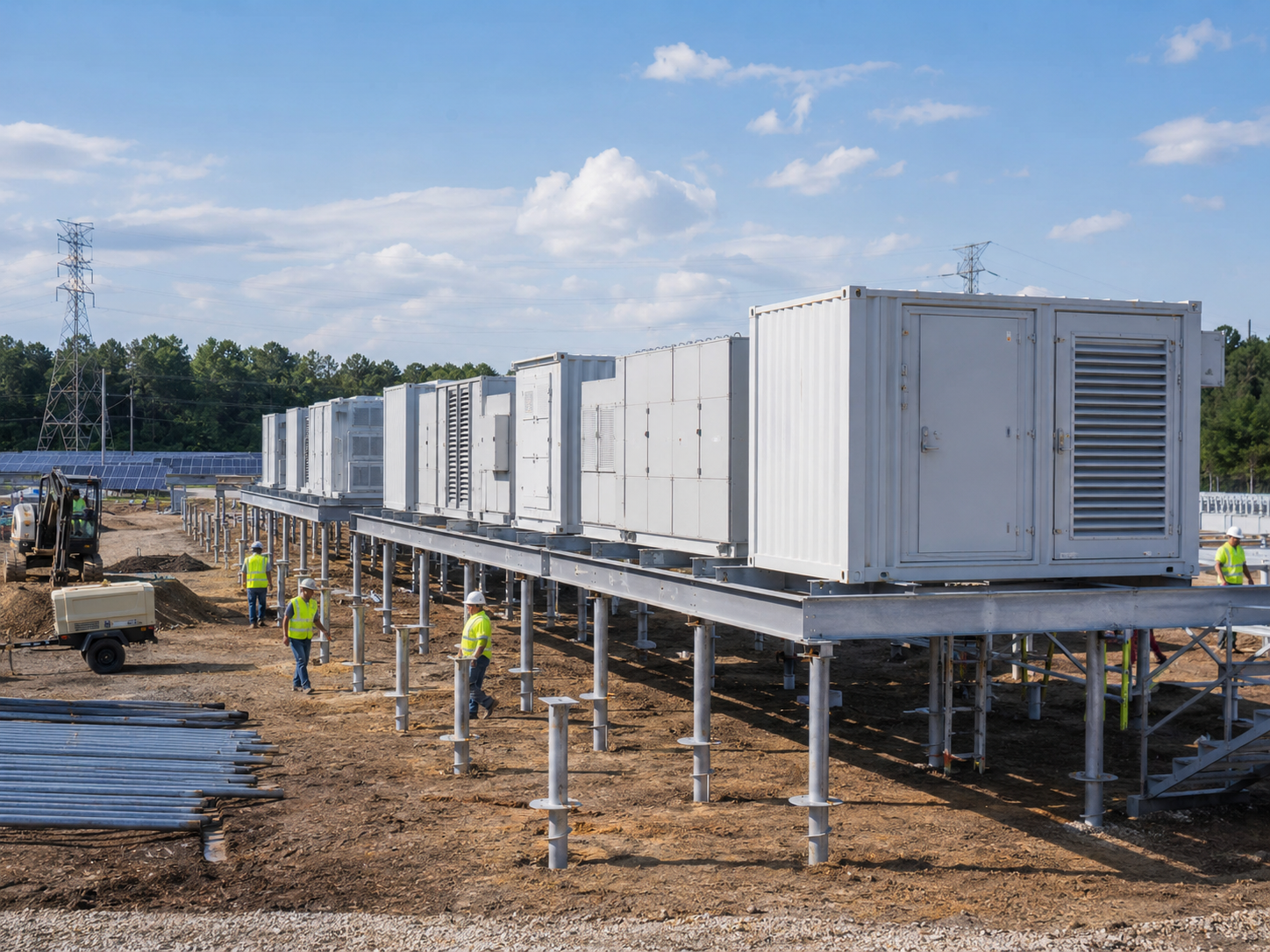

For containerized energy storage units, a rigid equipment frame is supported by multiple pile points. Excessive settlement of partial supports will hinder door operation of equipment, induce abnormal frame stress and pose risks to maintenance safety. Therefore, pile length, flight diameter, pile spacing and pile top connection details shall be determined according to equipment base dimensions and geotechnical investigation data.

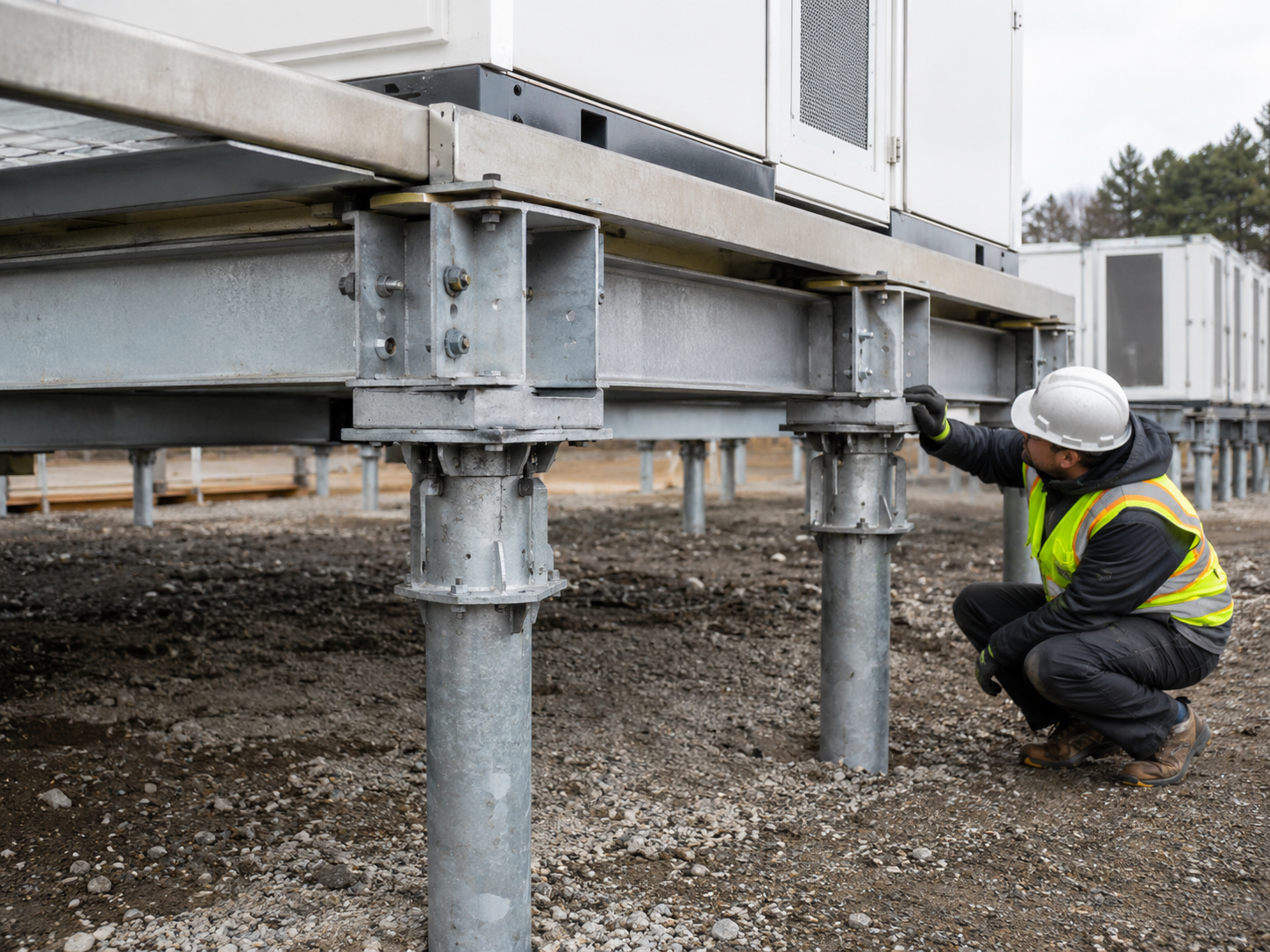

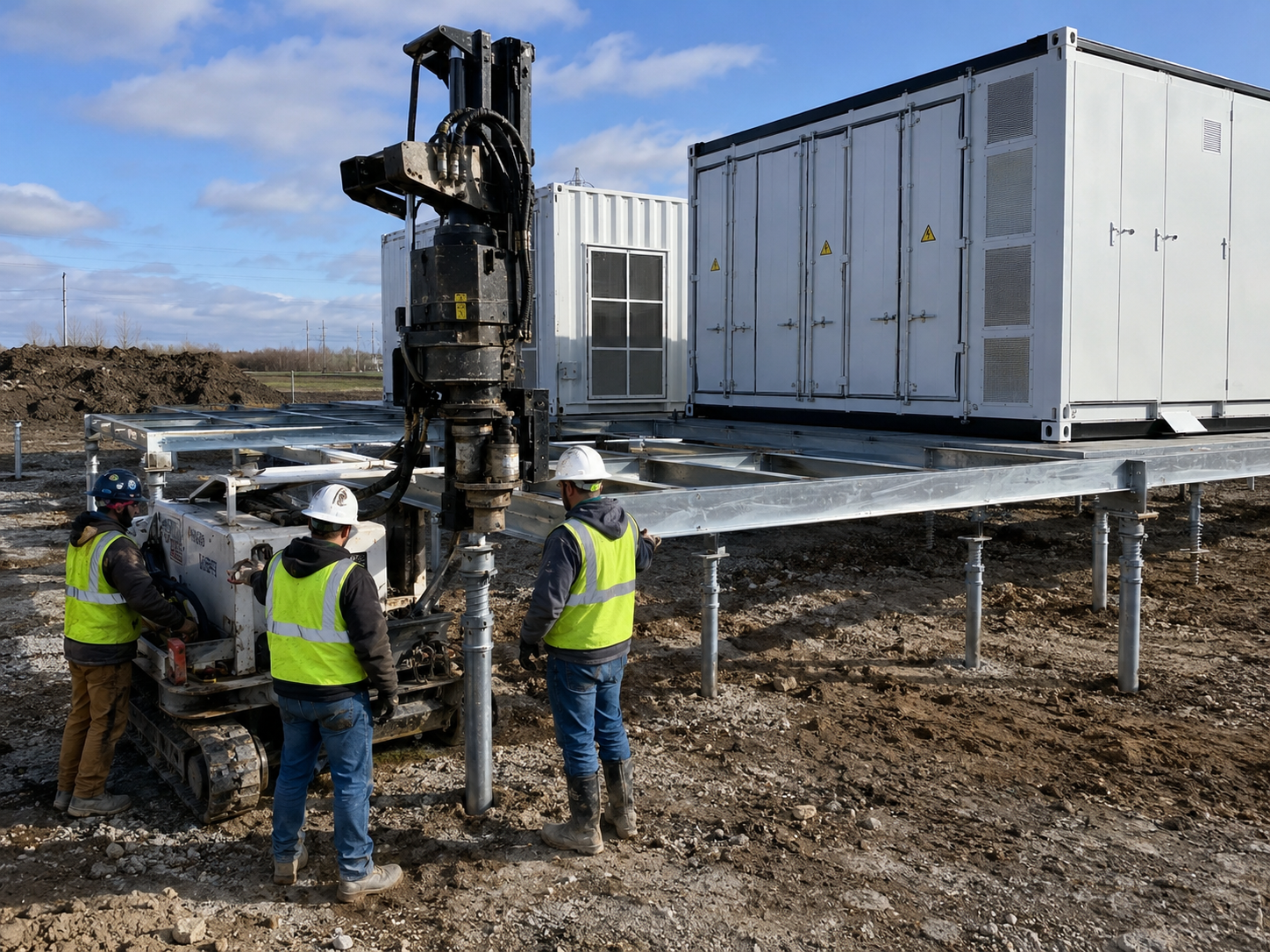

Upon completion of screw pile installation, construction of upper steel beams, frames or equipment bases can commence rapidly. This eliminates procedures such as concrete bedding, formwork erection and concrete curing, making screw piles ideal for rapid deployment and phased expansion of energy storage projects.

Vertical Loads

Self-weight of BESS containers + weight of battery racks + live maintenance loads

Horizontal Loads

50-year return period wind load + seismic action (per seismic fortification intensity)

Uplift Loads

Global uplift resistance under extreme wind conditions to prevent foundation overturning

Geotechnical Soil Layer Parameters Determine pile type and pile length

Anti-Corrosion & Durability Design

Project Value

Cut construction time for energy storage yards

Deliver steady multi-point support for container storage units

Support future capacity expansion and phased development

Minimize wet concrete works and simplify site management
